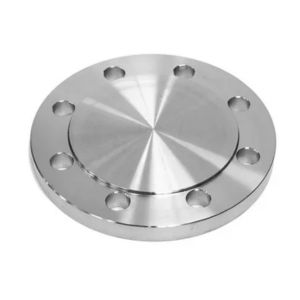

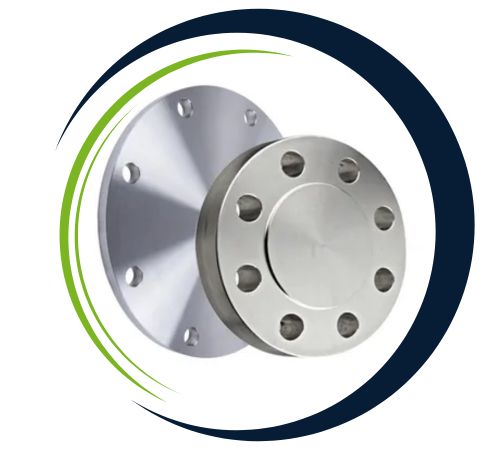

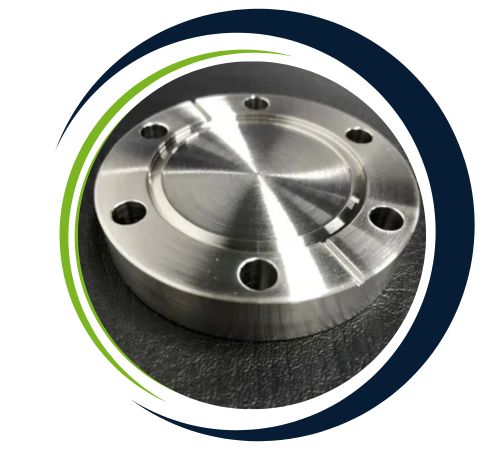

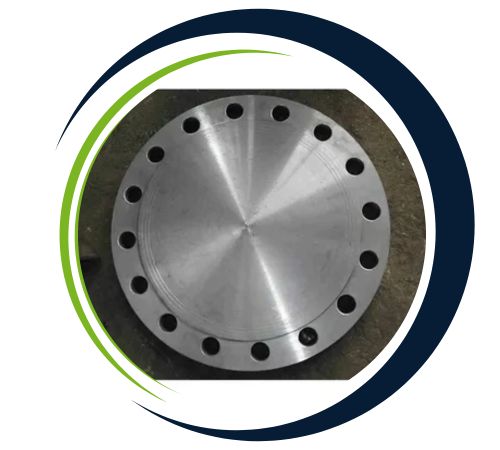

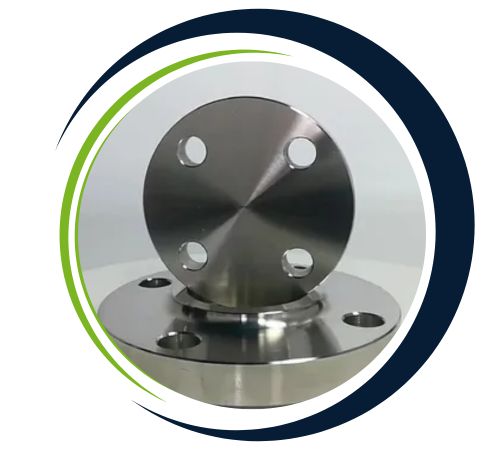

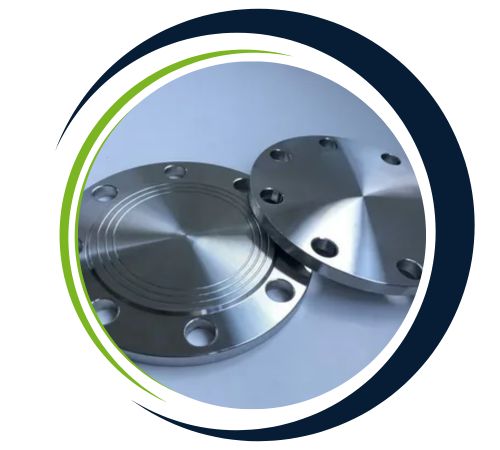

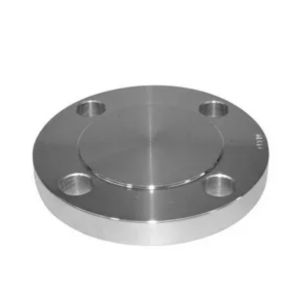

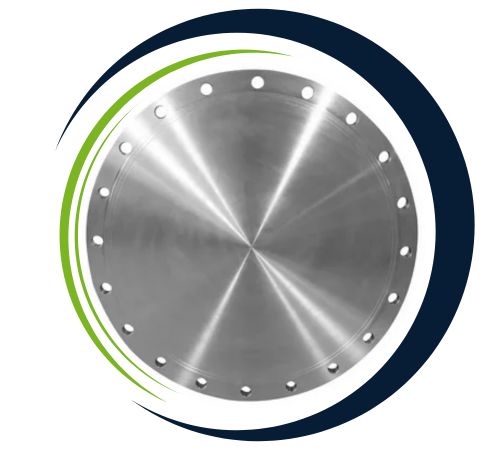

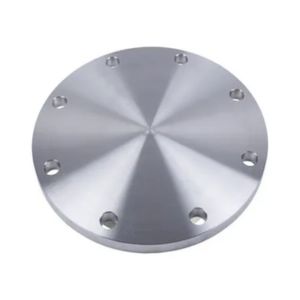

Based in the industrial heart of Safat, Kuwait, Shiraz Flanges has built a reputation for delivering uncompromising quality and reliability. We are a trusted manufacturer and supplier of critical pipeline components, with a specialized focus on the robust API Type 6BX Blind Flanges rated for 10,000 PSI. Engineered for the most demanding environments, these flanges are the definitive choice for operators who prioritize safety and performance. When you need to securely terminate a high-pressure line, our 6BX blinds provide the absolute confidence required for your most critical applications.
Crafted to meet the rigorous specifications of the American Petroleum Institute, these 10,000 PSI flanges are typically manufactured from high-grade materials like ASTM A182 F22 or F316 to ensure superior performance. Their composition is specifically chosen to deliver exceptional strength and remarkable resistance to corrosion and high temperatures. This results in a component with outstanding mechanical properties, including high tensile strength and excellent yield strength, guaranteeing they can withstand the immense pressures and stresses encountered in challenging oilfield and industrial settings without failure.
Shiraz Flanges, a leading supplier in Safat, Kuwait, offers an extensive selection of API – Type 6BX Blind Flanges 10,000 PSI, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Specification Table Of : | API Type 6BX Flange |
| ADNOC Approved Manufacturer Of Standards | ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, MSS S44, IS 2062, ISO70051, API, API7S-43, ANSI/ASME B16.5, API7S-15 |
| Temperature Ratings | 150 LB To 2500 LB |
| Size Chart | (1/2″) To (48″) |
| Manufacturing Process |
|
| Face Type Details | Raised Face, Large Tongue & Large Male-Female And Small Male-Female, Groove And Small Tongue Groove, RTJ, Flat Face, Lap-Joint Face. |
| Forging Materials | Stainless Steel, Alloy Steel, Carbon Steel, Duplex Steel & Super Duplex Steel, Cast Iron, Inconel, Mild Steel, Hastelloy, Copper Nickel, Wrought Iron. |
| Thickness | NPS ≤ 18 |
| Flanges High Temperature | Above 200° Celsius (400°F) For 150 Class Or Above 400° Celsius (750°F) |
| JIS Standards | 5K, 10K, 40K, 16K 20K 30K, 63K |
| Our Top Selling Products | Lap Joint, Socket-Weld, Blind, Threaded, Weld Neck, Slip-On |
| Buy Flanges For Pipe Connection | Power Plants Industry Food Processing And Manufacturing Waterworks Systems Nuclear Power Application Municipal Pipe Systems Fossil Fuel Power Plants Oil And Gas Industry |
| Type Of Making Format | Plate /Forged/ Threaded |
| Bore Diameter | NPS ≤ 10 |
| Size | B | OD | C | E1 | Q | G | K | T | J1 | J2 | J3 | J4 | R | BC | N | H | BX |
| 1 13/16″ | 46.8 | 185 | 3 | – | 5.56 | 77.77 | 105 | 42.1 | 88.9 | 65.1 | 48.5 | – | 10 | 146.1 | 8 | 23 | 151 |
| 2 1/16″ | 53.2 | 200 | 3 | – | 5.95 | 86.23 | 111 | 44.1 | 100 | 74.7 | 51.6 | – | 10 | 158.8 | 8 | 23 | 152 |
| 2 9/16″ | 65.9 | 230 | 3 | – | 6.75 | 102.77 | 132 | 51.2 | 120.7 | 92.1 | 57.2 | – | 10 | 184.2 | 8 | 26 | 153 |
| 3 1/16″ | 78.6 | 270 | 3 | – | 7.54 | 119 | 152 | 58.4 | 142.1 | 110.2 | 63.5 | – | 10 | 215.9 | 8 | 29 | 154 |
| 4 1/16″ | 104 | 315 | 3 | – | 8.33 | 150.62 | 185 | 70.3 | 182.6 | 146.1 | 73.1 | – | 10 | 258.8 | 8 | 32 | 155 |
| 5 1/8″ | 131 | 360 | 3 | 9.5 | 9.53 | 176.66 | 221 | 79.4 | 223.8 | 182.6 | 81 | 6.4 | 10 | 300 | 12 | 32 | 169 |
| 7 1/16″ | 180.2 | 480 | 6 | 11.1 | 11.11 | 241.83 | 302 | 103.2 | 301.6 | 254 | 95.3 | 9.7 | 16 | 403.2 | 12 | 42 | 156 |
| 9 “ | 229.4 | 550 | 6 | 12.7 | 12.7 | 299.06 | 359 | 123.9 | 374.7 | 327.1 | 93.7 | 9.7 | 16 | 476.3 | 16 | 42 | 157 |
| 11″ | 280.2 | 655 | 6 | 14.3 | 14.29 | 357.23 | 429 | 141.3 | 450.9 | 400.1 | 103.2 | 14.2 | 16 | 565.2 | 16 | 48 | 158 |
| 13 5/8″ | 346.9 | 770 | 6 | 15.9 | 15.88 | 432.64 | 518 | 168.3 | 552.5 | 495.3 | 114.3 | 17.5 | 16 | 673.1 | 20 | 51 | 159 |
| 16 3/4″ | 426.2 | 870 | 6 | 8.3 | 8.33 | 478.33 | 576 | 168.3 | 655.6 | 601.7 | 76.2 | 30.2 | 19 | 776.3 | 24 | 51 | 162 |
| 18 3/4″ | 477 | 1040 | 6 | 18.3 | 18.26 | 577.9 | 697 | 223.1 | 752.5 | 674.7 | 155.6 | 25.4 | 16 | 925.5 | 24 | 61 | 164 |
| 21 1/4″ | 540.5 | 1145 | 6 | 19.1 | 19.05 | 647.88 | 781 | 241.3 | 847.7 | 762 | 165.1 | 31.8 | 21 | 1022.4 | 24 | 67 | 166 |
API Type 6BX Blind Flanges (10,000 PSI) is extensively used for safely sealing high-pressure pipelines, valves, and reservoirs in vital industries like oil & gas, petrochemicals and offshore drilling. These flanges are particularly well-suited to temporary as well as permanent isolation of high-pressure systems, perfectly preventing the passage of gases and maintaining system integrity. Some common uses involve capping unused boreholes, providing isolation for parts of pipelines to facilitate maintenance work and carrying out pressure tests in sealed systems. Withstands high levels of stress, abrasive environments and mechanical degradation their sturdy nature guarantees prolonged stability and security even in harsh situations.
| NPS In Inch. | DN In MM | Flange Outside Daimeter A In MM | Flange Thickness D In MM | API 6a SORF Flange Weight In KG | API 6a WN Flange Weight In KG | API 6a BLRF Flange Weight In KG |
| 1/ 2 | 15 | 88.9 | 11.2 | 0.4 | 0.5 | 0.4 |
| 3/ 4 | 20 | 98.6 | 12.7 | 0.6 | 0.7 | 0.6 |
| 1 | 25 | 108 | 14.2 | 0.8 | 1 | 0.9 |
| 1 1/ 4 | 32 | 117.3 | 15.7 | 1 | 1.3 | 1.2 |
| 1 1/ 2 | 40 | 127 | 17.5 | 1.3 | 1.7 | 1.5 |
| 2 | 50 | 152.4 | 19.1 | 2.1 | 2.6 | 2.4 |
| 2 1/ 2 | 65 | 177.8 | 22.4 | 3.3 | 4.1 | 3.9 |
| 3 | 80 | 190.5 | 23.9 | 3.9 | 4.9 | 4.9 |
| 3 1/ 2 | 90 | 215.9 | 23.9 | 4.8 | 6.1 | 6.2 |
| 4 | 100 | 228.6 | 23.9 | 5.3 | 6.8 | 7.0 |
| 5 | 125 | 254 | 23.9 | 6.1 | 8.6 | 8.6 |
| 6 | 150 | 279.4 | 25.4 | 7.5 | 10.6 | 11.3 |
| 8 | 200 | 342.9 | 28.4 | 12.1 | 17.6 | 19.6 |
| 10 | 250 | 406.4 | 30.2 | 16.5 | 24 | 28.6 |
| 12 | 300 | 482.6 | 31.8 | 26.2 | 36.5 | 43.2 |
| 14 | 350 | 533.4 | 35.1 | 34.6 | 48.4 | 58.1 |
| 16 | 400 | 596.9 | 36.6 | 44.8 | 60.6 | 76.1 |
| 18 | 450 | 635 | 39.6 | 48.9 | 68.3 | 93.7 |
| 20 | 500 | 698.5 | 42.9 | 61.9 | 84.5 | 122.0 |
| 24 | 600 | 812.8 | 47.8 | 86.9 | 115 | 185.0 |
Yes, we offer custom sizes for API – Type 6BX Blind Flanges 10,000 PSI to meet specific project needs. Our team at Shiraz Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shirazflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
