Nestled in the industrial hub of Safat, Kuwait, Shiraz Flanges has built a solid reputation as a trusted manufacturer and supplier of high-performance components. Their expertise shines particularly bright with their range of Incoloy flanges. Engineered for situations where ordinary materials would fail, these flanges are the go-to choice for industries that demand resilience against extreme temperatures and corrosive environments, ensuring long-lasting integrity in critical piping systems.
These Incoloy flanges are crafted from specialized nickel-chromium alloys, often enriched with elements like iron, molybdenum, and copper. This sophisticated composition gives them an exceptional ability to maintain strength and resist oxidation under intense heat and pressure. They offer outstanding mechanical properties, including high tensile strength and superior resistance to corrosion, making them incredibly durable. This robust construction ensures they perform reliably in the most challenging conditions, providing a dependable, long-term solution.
Specifications: ASTM B564 / ASME SB564
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size :1/2″ (15 NB) to 48″ (1200NB)
Class / Pressure :150#, 300#, 800#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

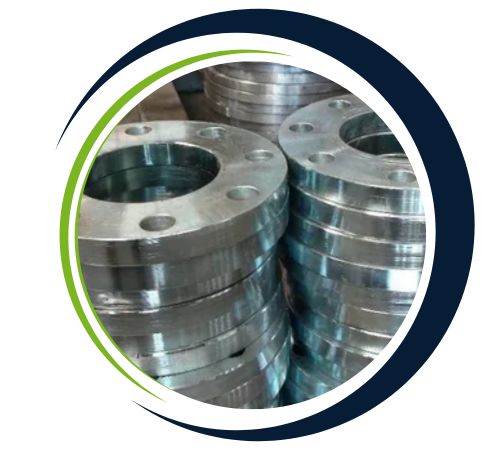

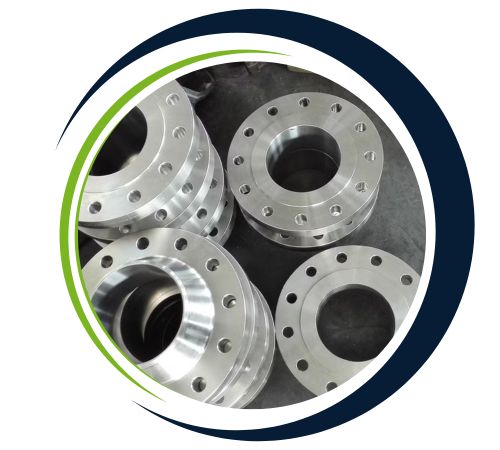

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Grade : 800 / 800H / 800HT / 825 UNS (N08800, N08810, N08811, N08825), DIN (1.4876, 1.4958, 1.4859, 2.4858)

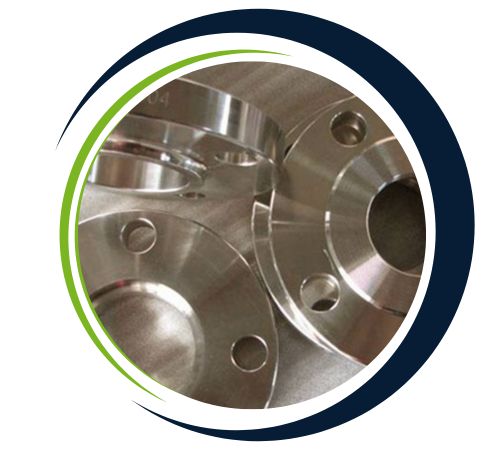

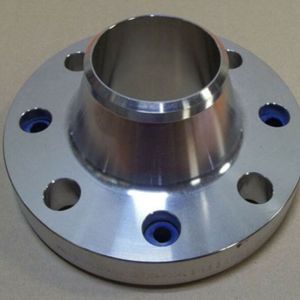

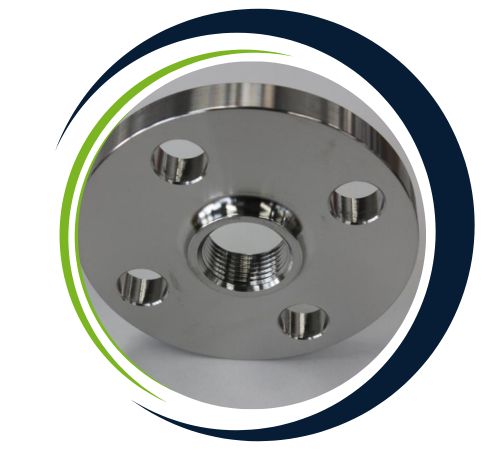

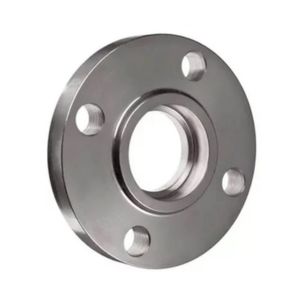

Shiraz Flanges, a leading supplier in Safat, Kuwait, offers an extensive selection of Incoloy Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Wall Thickness Of Incoloy Flanges | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Normal Pipe Size (NPS) | O.D. (Outside Daimeter) | Sch 10 | Sch 20 | Sch 30 | STD Wall Outside Daimeter | Sch 40 | Sch 60 | EXT Hvy Outside Daimeter | Schedule 80 | Schedule 100 | Schedule 120 | Schedule 140 | Schedule 160 | XX Hvy |
| ½ | 0.84 | 0.083 | … | … | 0.109 | 0.109 | … | 0.147 | 0.147 | … | … | … | 0.188 | 0.294 |
| ¾ | 1.05 | 0.083 | … | … | 0.113 | 0.113 | … | 0.154 | 0.154 | … | … | … | 0.219 | 0.308 |
| 1 | 1.315 | 0.109 | … | … | 0.133 | 0.133 | … | 0.179 | 0.179 | … | … | … | 0.25 | 0.358 |
| 1 ¼ | 1.66 | 0.109 | … | … | 0.14 | 0.14 | … | 0.191 | 0.191 | … | … | … | 0.25 | 0.382 |
| 1 ½ | 1.9 | 0.109 | … | … | 0.145 | 0.145 | … | 0.2 | 0.2 | … | … | … | 0.281 | 0.4 |
| 2 | 2.375 | 0.109 | … | … | 0.154 | 0.154 | … | 0.218 | 0.218 | … | … | … | 0.344 | 0.436 |
| 2 ½ | 2.875 | 0.12 | … | … | 0.203 | 0.203 | … | 0.276 | 0.276 | … | … | … | 0.375 | 0.552 |
| 3 | 3.5 | 0.12 | … | … | 0.216 | 0.216 | … | 0.3 | 0.3 | … | … | … | 0.438 | 0.6 |
| 3 ½ | 4 | 0.12 | … | … | 0.226 | 0.226 | … | 0.318 | 0.318 | … | … | … | … | 0.636 |
| 4 | 4.5 | 0.12 | … | … | 0.237 | 0.237 | … | 0.337 | 0.337 | … | 0.438 | … | 0.531 | 0.674 |
| 5 | 5.563 | 0.134 | … | … | 0.258 | 0.258 | … | 0.375 | 0.375 | … | 0.5 | … | 0.625 | 0.75 |
| 6 | 6.625 | 0.134 | … | … | 0.28 | 0.28 | … | 0.432 | 0.432 | … | 0.562 | … | 0.719 | 0.864 |
| 8 | 8.625 | 0.148 | 0.25 | 0.277 | 0.322 | 0.322 | 0.406 | 0.5 | 0.5 | 0.594 | 0.719 | 0.812 | 0.906 | 0.875 |
| 10 | 10.75 | 0.165 | 0.25 | 0.307 | 0.365 | 0.365 | 0.5 | 0.5 | 0.594 | 0.719 | 0.844 | 1 | 1.125 | 1 |
| 12 | 12.75 | 0.18 | 0.25 | 0.33 | 0.375 | 0.406 | 0.562 | 0.5 | 0.688 | 0.844 | 1 | 1.125 | 1.312 | 1 |
| 14 | 14 | 0.25 | 0.312 | 0.375 | 0.375 | 0.438 | 0.594 | 0.5 | 0.75 | 0.938 | 1.094 | 1.25 | 1.406 | … |
| 16 | 16 | 0.25 | 0.312 | 0.375 | 0.375 | 0.5 | 0.656 | 0.5 | 0.844 | 1.031 | 1.219 | 1.438 | 1.594 | … |
| 18 | 18 | 0.25 | 0.312 | 0.438 | 0.375 | 0.562 | 0.75 | 0.5 | 0.938 | 1.156 | 1.375 | 1.562 | 1.781 | … |
| 20 | 20 | 0.25 | 0.375 | 0.5 | 0.375 | 0.594 | 0.812 | 0.5 | 1.031 | 1.281 | 1.5 | 1.75 | 1.969 | … |
| 22 | 22 | 0.25 | … | … | 0.375 | … | … | 0.5 | … | … | …. | …. | …. | …. |
| 24 | 24 | 0.25 | 0.375 | 0.562 | 0.375 | 0.688 | 0.969 | 0.5 | 1.219 | 1.531 | 1.812 | 2.062 | 2.344 | …. |
| 26 | 26 | …. | …. | …. | 0.375 | …. | …. | 0.5 | …. | …. | …. | …. | …. | …. |
| 30 | 30 | 0.312 | 0.5 | 0.625 | 0.375 | …. | …. | 0.5 | …. | …. | …. | …. | …. | …. |
| 36 | 36 | 0.312 | 0.5 | 0.625 | 0.375 | 0.75 | …. | 0.5 | …. | …. | …. | …. | …. | …. |
| 40 | 40 | …. | …. | …. | 0.375 | …. | …. | 0.5 | …. | …. | …. | …. | …. | …. |
| 42 | 42 | …….. | …….. | …….. | 0.375 | …….. | …….. | 0.5 | …….. | …….. | …….. | …….. | …….. | …….. |
| 48 | 48 | …….. | …….. | …….. | 0.375 | …….. | …….. | 0.5 | …….. | …….. | …….. | …….. | …….. | …….. |
Incoloy Flanges performance under extreme conditions. It is often used in the oil and gas sector to join pipelines of high-temperature and corrosion products. In chemical uses, these flanges give a secure seal to acid and chemical intensive systems. Incoloy flanges are utilized in power generation facilities for elevated temperature applications such as hot water installations, where concerning oxidation as well as resistance to thermal stress, they find applications in marine atmospheres seawater corrosive-resistant, allowing for long-lasting operation under hostile conditions.
Yes, we offer custom sizes for Incoloy Flanges to meet specific project needs. Our team at Shiraz Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shirazflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
