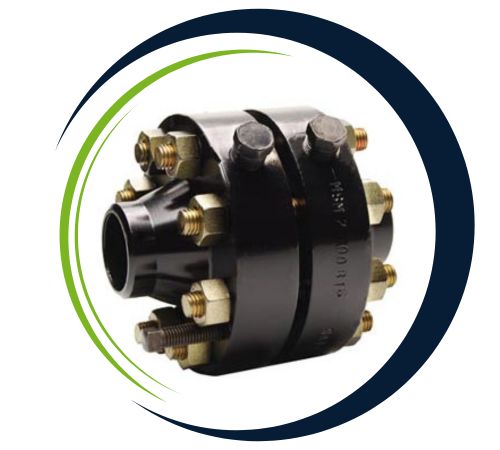

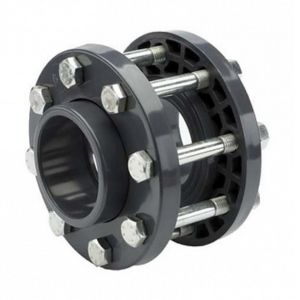

Shiraz Flanges, based in the industrial heart of Safat, Kuwait, has built a strong reputation as a trusted partner for the oil and gas sector. We specialize in manufacturing and supplying high-performance carbon steel orifice flanges, engineered to meet the precise demands of flow measurement systems. Our commitment is to deliver not just a product, but a reliable solution that ensures accuracy, safety, and long-term durability for the critical operations of our clients throughout Kuwait and the wider region.

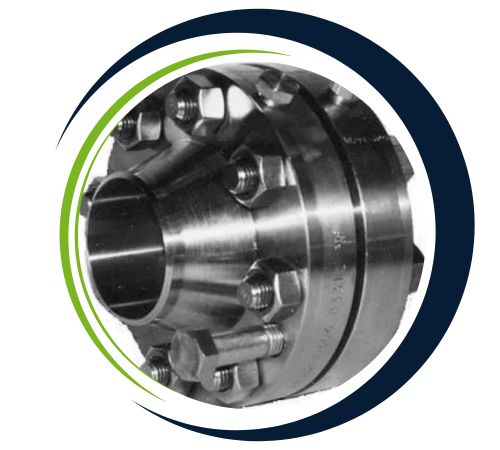

Our carbon steel orifice flanges are crafted from robust materials, typically using grades like A105. This composition ensures a fine balance of strength and ductility, providing excellent tensile and yield strength to withstand high-pressure environments. To guarantee this performance, each flange undergoes thorough heat treatment processes. This enhances its mechanical properties, resulting in a component that offers superior impact resistance and reliable performance under demanding industrial conditions.
Shiraz Flanges, a premier supplier in Safat, Kuwait, specializes in high-quality Carbon Steel Orifice Flanges, valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
Carbon Steel Orifice Flanges Specifications: ASTM A105/ ASME SA105
Carbon Steel Orifice Flanges Dimensions: ANSI/ASME B16.36, Series A & B, BS4504, BS 10, EN-1092, DIN, etc.
Carbon Steel Orifice Flanges Standard: ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Carbon Steel Orifice Flanges : Size :1/2″ (15 NB) to 48″ (1200NB)
Carbon Steel Orifice Flanges Class / Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

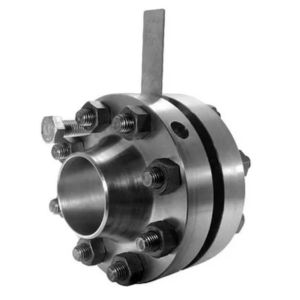

Carbon Steel Orifice Flange Face Type: Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
| Size in Inch | Size in mm | Outer Dia. | Flange Thick. | Hub OD | Weld Neck OD | Welding Neck Length | RF Dia. | RF Height | PCD | Orifice Hole dia | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | F | G | H | I | ||||||||
| 1 | 25 | 125 | 36.6 | 54 | 33.4 | 81 | 50.8 | 2 | 88.9 | 6.4 | 4 | 5/8 | 125 | 3/4 | M16 | 4.5 |
| 1 1/2 | 40 | 155 | 36.6 | 70 | 48.3 | 84 | 73 | 2 | 114.3 | 6.4 | 4 | 3/4 | 135 | 7/8 | M20 | 6.5 |
| 2 | 50 | 165 | 36.6 | 84 | 60.3 | 84 | 92.1 | 2 | 127 | 6.4 | 8 | 5/8 | 125 | 3/4 | M16 | 7 |
| 2 1/2 | 65 | 190 | 36.6 | 100 | 73 | 87 | 104.8 | 2 | 149.2 | 6.4 | 8 | 3/4 | 135 | 7/8 | M20 | 7.5 |
| 3 | 80 | 210 | 36.6 | 117 | 88.9 | 87 | 127 | 2 | 168.3 | 9.5 | 8 | 3/4 | 135 | 7/8 | M20 | 9.4 |
| 4 | 100 | 255 | 36.6 | 146 | 114.3 | 90 | 157.2 | 2 | 200 | 12.7 | 8 | 3/4 | 135 | 7/8 | M20 | 13.2 |
| 6 | 150 | 320 | 36.6 | 206 | 168.3 | 98 | 215.9 | 2 | 269.9 | 12.7 | 12 | 3/4 | 135 | 7/8 | M20 | 14.6 |
| 8 | 200 | 380 | 39.7 | 260 | 219.1 | 110 | 269.9 | 2 | 330.2 | 12.7 | 12 | 7/8 | 145 | 1 | M24 | 30 |
| 10 | 250 | 445 | 46.1 | 321 | 273 | 116 | 323.8 | 2 | 387.3 | 12.7 | 16 | 1 | 165 | 1 1/8 | M27 | 41 |
| 12 | 300 | 520 | 49.3 | 375 | 323.8 | 129 | 381 | 2 | 450.8 | 12.7 | 16 | 1 1/8 | 180 | 1 1/4 | M30 | 62 |
| 14 | 350 | 585 | 52.4 | 425 | 355.6 | 141 | 412.8 | 2 | 514.4 | 12.7 | 20 | 1 1/8 | 185 | 1 1/4 | M30 | 84 |
| 16 | 400 | 650 | 55.6 | 483 | 406.4 | 144 | 469.9 | 2 | 571.5 | 12.7 | 20 | 1 1/4 | 195 | 1 3/8 | M33 | 111 |
| 18 | 450 | 710 | 58.8 | 533 | 457 | 157 | 533.4 | 2 | 628.6 | 12.7 | 24 | 1 1/4 | 205 | 1 3/8 | M33 | 138 |
| 20 | 500 | 775 | 62 | 587 | 508 | 160 | 584.2 | 2 | 685.8 | 12.7 | 24 | 1 1/4 | 215 | 1 3/8 | M33 | 171 |
| 24 | 600 | 915 | 68.3 | 702 | 610 | 167 | 692.2 | 2 | 812.8 | 12.7 | 24 | 1 1/2 | 240 | 1 5/8 | M39 | 247 |
Carbon steel orifice flanges find applications in numerous industrial processes to meter liquid or gas flow through pipes. The flanges are used to support orifice plates, which produce a pressure difference and assist in taking into account flow. Common uses involve oil and gas installations, power generation plants, chemical processing facilities, water treatment facilities, and air conditioning and heating systems. It is usually applied in several uses where precise measurement of flow is needed to maintain process control and efficiency. Carbon steel has strength, cost and longevity and is perfect for high-pressure and high-temperature applications.
Yes, we offer custom sizes for Carbon Steel Orifice Flanges to meet specific project needs. Our team at Shiraz Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shirazflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
