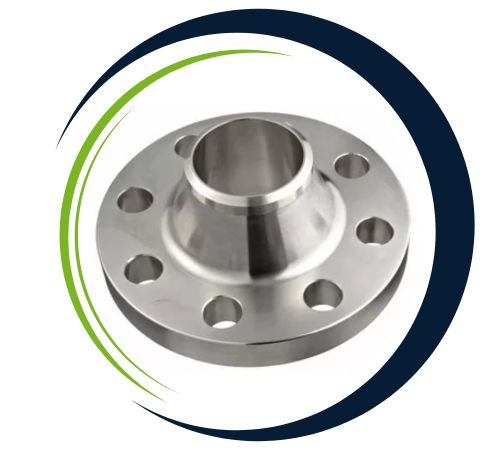

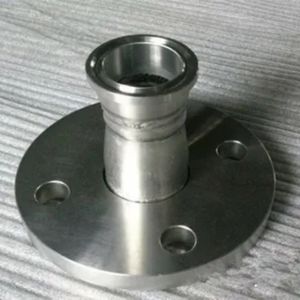

Nestled in the industrial heart of Safat, Kuwait, Shiraz Flanges takes great pride in supplying robust pipeline components built for the demands of modern industry. Our **DIN 2633 PN16 Weld Neck Flanges** are a prime example of this commitment. They are precisely engineered to create strong, reliable connections in high-pressure piping systems, serving as a testament to the quality and technical expertise we offer from right here in Kuwait.
Constructed from high-quality carbon or stainless steels, these flanges are built to endure. They meet stringent material composition and mechanical properties, including tensile strength and yield strength, as dictated by the DIN 2633 standard. This ensures reliable performance under the designated pressure rating of 16 bar, making them exceptionally strong and dependable for a wide range of demanding industrial applications.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
|
Germany standard flange DIN 2633 welding neck flanges; nominal pressure 16 |
||||||||||||||||
|
Brides à souder à collerette DIN 2633: pression nominale 16 |
||||||||||||||||
| Pipe | Flange | Neck | Raised face | Screws | Weight | |||||||||||
| (7,85 Kg/dm3) | ||||||||||||||||
| Rated | d1 | D | b | k | h1 | d3 | s | r | h2 | d4 | f | Holes | Thread | d2 | Kg | |
| Diameter | ISO Series | DIN Series | ||||||||||||||
| 15 | – | 20 | 95 | 14 | 65 | 35 | 30 | 2 | 4 | 6 | 45 | 2 | 4 | M 12 | 14 | 0,648 |
| 21,3 | – | 32 | ||||||||||||||
| 20 | – | 25 | 105 | 16 | 75 | 38 | 38 | 2,3 | 4 | 6 | 58 | 2 | 4 | M 12 | 14 | 0,952 |
| 26,9 | – | 40 | ||||||||||||||
| 25 | – | 30 | 115 | 16 | 85 | 38 | 42 | 2,6 | 4 | 6 | 68 | 2 | 4 | M 12 | 14 | 1,14 |
| 33,7 | – | 45 | ||||||||||||||
| 32 | – | 38 | 140 | 16 | 100 | 40 | 52 | 2,6 | 6 | 6 | 78 | 2 | 4 | M 16 | 18 | 1,69 |
| 42,4 | – | 56 | ||||||||||||||
| 40 | – | 44,5 | 150 | 16 | 110 | 42 | 60 | 2,6 | 6 | 7 | 88 | 3 | 4 | M 16 | 18 | 1,86 |
| 48,3 | – | 64 | ||||||||||||||
| 50 | – | 57 | 165 | 18 | 125 | 45 | 72 | 2,9 | 6 | 8 | 102 | 3 | 4 | M 16 | 18 | 2,53 |
| 60,3 | – | 75 | ||||||||||||||
| 65 | 76,1 | – | 185 | 18 | 145 | 45 | 90 | 2,9 | 6 | 10 | 122 | 3 | 4 | M 16 | 18 | 3,06 |
| 80 | 88,9 | – | 200 | 20 | 160 | 50 | 105 | 3,2 | 8 | 10 | 138 | 3 | 8 | M 16 | 18 | 3,7 |
| 100 | – | 108 | 220 | 20 | 180 | 52 | 125 | 3,6 | 8 | 12 | 158 | 3 | 8 | M 16 | 18 | 4,62 |
| 114,3 | – | 131 | ||||||||||||||
| 125 | – | 133 | 250 | 22 | 210 | 55 | 150 | 4 | 8 | 12 | 188 | 3 | 8 | M 16 | 18 | 6,3 |
| 139,7 | – | 156 | ||||||||||||||
| 150 | – | 159 | 285 | 22 | 240 | 55 | 175 | 4,5 | 10 | 12 | 212 | 3 | 8 | M 20 | 22 | 7,75 |
| 168,3 | – | 184 | ||||||||||||||
| (175) | 193,7 | – | 315 | 24 | 270 | 60 | 210 | 5,4 | 10 | 12 | 242 | 3 | 8 | M 20 | 22 | 9,85 |
| 200 | 219,1 | – | 340 | 24 | 295 | 62 | 235 | 5,9 | 10 | 16 | 268 | 3 | 12 | M 20 | 22 | 11 |
| 250 | – | 267 | 405 | 26 | 355 | 70 | 285 | 6,3 | 12 | 16 | 320 | 3 | 12 | M 24 | 26 | 15,6 |
| 273 | – | 292 | ||||||||||||||
| 300 | 323,9 | – | 460 | 28 | 410 | 78 | 344 | 7,1 | 12 | 16 | 378 | 4 | 12 | M 24 | 26 | 22 |
| 350 | 355,6 | – | 520 | 30 | 470 | 82 | 390 | 8 | 12 | 16 | 438 | 4 | 16 | M 24 | 26 | 31,2 |
| – | 368 | 28,8 | ||||||||||||||
| 400 | 406,4 | – | 580 | 32 | 525 | 85 | 445 | 8 | 12 | 16 | 490 | 4 | 16 | M 27 | 30 | 39,3 |
| – | 419 | 36,3 | ||||||||||||||
| (450) | 457 | – | 640 | 34 | 585 | 85 | 490 | 8 | 12 | 16 | 550 | 4 | 20 | M 27 | 30 | 44,3 |
| 500 | 508 | – | 715 | 34 | 650 | 90 | 548 | 8 | 12 | 16 | 610 | 4 | 20 | M 30 | 33 | 61 |
| 600 | 610 | – | 840 | 36 | 770 | 95 | 652 | 8,8 | 12 | 18 | 725 | 5 | 20 | M 33 | 36 | 75,4 |
| 700 | 711 | – | 910 | 36 | 840 | 100 | 755 | 8,8 | 12 | 18 | 795 | 5 | 24 | M 33 | 36 | 77 |
| 800 | 813 | – | 1025 | 38 | 950 | 105 | 855 | 10 | 12 | 20 | 900 | 5 | 24 | M 36 | 39 | 101 |
| 900 | 914 | – | 1125 | 40 | 1050 | 110 | 955 | 10 | 12 | 20 | 1000 | 5 | 28 | M 36 | 39 | 122 |
| 1000 | 1016 | – | 1255 | 42 | 1170 | 120 | 1058 | 10 | 16 | 22 | 1115 | 5 | 28 | M 39 | 42 | 162 |

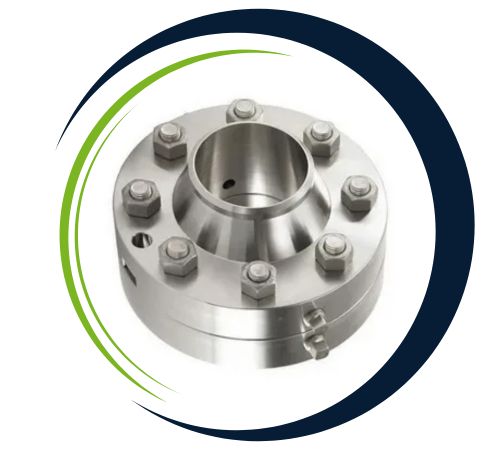

Shiraz Flanges, a leading supplier in Safat, Kuwait, offers an extensive selection of DIN 2633 PN16 Weld Neck Flanges , including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
DIN 2633 PN16 Weld Neck Flanges are used in medium-pressure piping systems across industries such as oil and gas, petrochemical, water treatment, and power generation. Their robust design ensures secure, leak-proof connections between pipes, valves, and equipment, making them ideal for systems exposed to fluctuating temperatures and pressures. Commonly installed in critical applications, these flanges provide reliable performance and stability in process pipelines, pumps, and compressors. Their durability and precise alignment make them essential for maintaining system integrity and optimizing operational efficiency in high-demand environments.
Yes, we offer custom sizes for DIN 2633 PN16 Weld Neck Flanges to meet specific project needs. Our team at Shiraz Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shirazflanges.com.
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
