Nestled in the industrial heart of Safat, Kuwait, Shiraz Flanges stands as a trusted name for high-quality pipeline solutions. We take particular pride in our extensive inventory of GOST 33259 flanges, meticulously engineered to meet the rigorous standards demanded by major projects across the region. For industries where precision, durability, and strict adherence to specifications are non-negotiable, we provide the critical components that ensure operational integrity and long-lasting performance in even the most demanding environments.
Crafted from robust materials like carbon and stainless steels, these flanges are heat-treated to achieve superior mechanical properties. The specific chemical composition ensures excellent weldability and resistance to corrosion, while the mechanical strength, including yield and tensile strength, adheres strictly to the GOST 33259 standard. This guarantees they can withstand high pressures and challenging conditions, providing a reliable and leak-proof connection that engineers and project managers can depend on for critical infrastructure.
| Standard | GOST / ГОСТ 33259 |
| Size | 1/2″ to 48″ |
| UNI | 6Bar 16Bar 10Bar 25Bar 40Bar |
| Class | 300 LBS, 150 LBS, 900 LBS, 600 LBS, 1500 LBS, 2500 LBS |
| EN | 6Bar 25Bar 10Bar 40Bar 16Bar |
| Flanges Face Type Provided By Manufacturer | RF (Raised Face), RTJ (Ring Type Joint) |
| BS | BS4504 , BS4504, BS1560, BS10 |
| Value Added Services | CNC Machining, Customised Flanges |
| Outer diameters | 1/2” to 24” |
| Making Methods Provided By Manufacturer | Casting And Forging Rolling And Cutting |
| JIS | 5K, 16 K 10 K, 20 K, 40 K, 30 K, 63 K |
| Flanges Test | Hydrostatic testing machine/ UI trasonic flaw detector/ X-ray detector/ Direct-reading Spectrograph/ Magnetic particle detector |
| Coating/Surface Treatment By Manufacturer | Antirust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| Flanges Equipment | Pushing Machine/ electric bevelling machine/ Press machine/ Bending machine/ Sand-blasting machine etc |
| Standards Provided By Manufacturer | BS4504, BS 10, API7S-15, JISB2220, BS1560-3.1, ANSI/ASME B16.5/16.36/16.47A/16.47B, EN1092, DIN, API7S-43, API605, B16.48, ISO70051, MSS S44 |

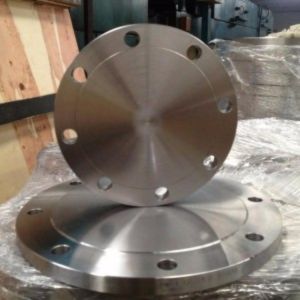

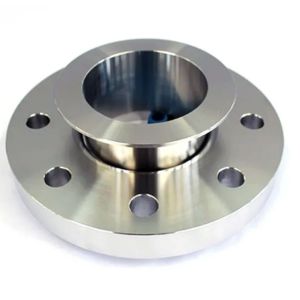

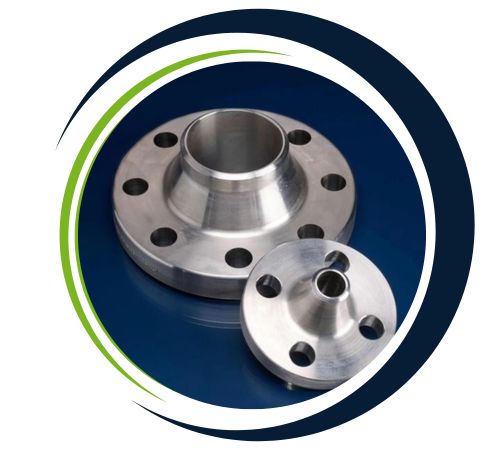

Shiraz Flanges a leading supplier in Safat, Kuwait, offers an extensive selection of GOST 12821-80 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
The GOST 33259 flange is widely used in industrial applications where reliable high-strength connections are required. Commonly found in oil and gas pipelines, petrochemical plants, power plants, and chemical plants. These flanges provide safe, watertight joint transport for liquid gases and hot water under high pressure and high temperature conditions. Their heat exchangers, valves, pumps , compressors etc. are important in applications, ensuring safe and efficient operating procedures critical Flanges. Also provide easy maintenance and disassembly for maintenance and make them desirable for demanding industries for durability, safety and reliable performance in harsh working environments.
| Diameter conditional (DN), millimeter | O.D. Of (D), millimeter | Diameter of spacing (D0), millimeter | Diameter internal (dB), millimeter | Flange wall thickness (b), millimeter | fastener Size (d0), millimeter | mounting holes Number (n), pcs | Weight of one flange, kilogram |
| 15 | 80/95 | 55/65 | nineteen | 10/10 | 11/14 | 4/4 | 0.3 / 0.5 |
| 20 | 90/105 | 65/76 | nineteen | 12/12 | 11/14 | 4/4 | 0.5 / 0.7 |
| 25 | 100/115 | 75/85 | nineteen | 12/12 | 11/14 | 4/4 | 0.6 / 0.9 |
| 32 | 120/135 | 90/100 | 39 | 13/14 | 14/18 | 4/4 | 1.1 / 1.4 |
| 40 | 130/145 | 100/110 | 46 | 13/15 | 14/18 | 4/4 | 1.2 / 2 |
| 50 | 140/160 | 110/125 | 59 | 13/15 | 14/18 | 4/4 | 1.3 / 2.1 |
| 65 | 160/180 | 130/145 | 78 | 13/17 | 14/18 | 4/4 | 1.6 / 2.8 |
| 80 | 180/195 | 150/160 | 91 | 15/17 | 18/18 | 4/4 | 2.4 / 3.2 |
| 100 | 205/215 | 170/180 | 110 | 15/19 | 18/18 | 4/8 | 2.8 / 4 |
| 125 | 235/245 | 200/210 | 135 | 17/21 | 18/18 | 8/8 | 3.8 / 5.4 |
| 150 | 260/280 | 225/240 | 161 | 17/21 | 18/22 | 8/8 | 4.4 / 6.6 |
| 200 | 315/335 | 280/295 | 222 | 19/21 | 18/22 | 8/8 | 5.9 / 8 |
| 250 | 370/390 | 335/350 | 273 | 20/23 | 18/22 | 12/12 | 7.6 / 10 |
| 300 | 435/440 | 395/400 | 325 | 20/24 | 22/22 | 12/12 | 10.2 / 13 |
| 350 | 485/500 | 445/460 | 377 | 22/24 | 22/22 | 12/16 | 12.6 / 16 |
| 400 | 535/565 | 495/515 | 426 | 24/26 | 22/26 | 16/16 | 15.2 / 21 |
| 500 | 640/670 | 600/620 | 530 | 25/28 | 22/26 | 16/20 | 19/28 |
| 600 | 755/780 | 705/725 | 630 | 25/31 | 26/30 | 20/20 | 26/40 |
| 800 | 975/1010 | 920/950 | 820 | 27/37 | 30/33 | 24/24 | 46/79 |
| 1000 | 1175/1220 | 1120/1160 | 1020 | 31/43 | 30/33 | 28/28 | 64/118 |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
