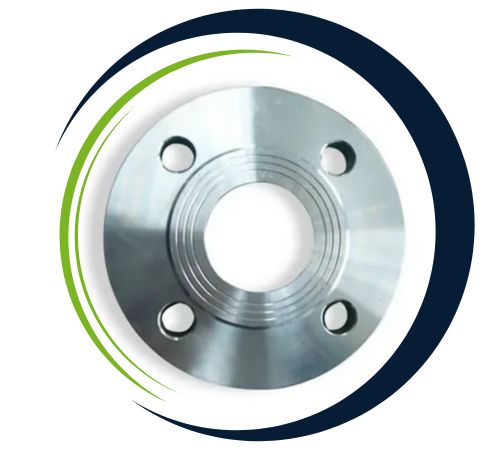

Nestled in the industrial hub of Safat, Kuwait, Shiraz Flanges has built a reputation as a trusted name for high-performance industrial components. Their expertise shines in the supply of Hastelloy Plate Flanges, which are crafted for situations where failure is not an option. These aren’t your everyday flanges; they are the backbone of critical systems that must withstand incredibly harsh environments, ensuring a secure and reliable seal against extreme challenges that would compromise ordinary materials.
These flanges are primarily composed of a nickel-chromium-molybdenum alloy, which gives them their signature superhuman tolerance to corrosion. The specific composition is carefully controlled to achieve excellent mechanical strength and toughness, even when exposed to both high temperatures and intense pressures. This balance of properties means they won’t become brittle or deform under demanding conditions, maintaining a perfect seal and structural integrity over a long service life. You can count on their durability.
Hastelloy Plate Flanges Specification : ASTM B564 / ASME SB564
Dimension Standard : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
DIN Flanges : DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673.
JIS Flanges : JIS B2220 5K, JIS B2220 10K, JIS B2220 16K, JIS B2220 20K
BS Flanges : BS4504 PN 6, BS 4504 PN 10, BS4504 PN 16, BS4504 PN 25, BS4504 PN 40, BS 4504 PN 64, BS 4504 PN 100, BS 4504 PN 160, BS 4504 PN 250, BS 10, BS Table D, BS Table E, BS Table F, BS Table H.
Shiraz Flanges, a premier supplier in Safat, Kuwait, specializes in high-quality Hastelloy Plate Flanges. They are valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
Hastelloy Plate Flanges are widely used in industries requiring exceptional corrosion resistance and durability. Common applications include chemical processing, where they withstand harsh acids, alkalis, and oxidizing agents, and marine environments, where their resistance to seawater corrosion is critical. They are also used in oil and gas systems for handling aggressive fluids and in power plants for high-temperature operations. Their robust mechanical properties and reliability make them ideal for pressure vessels, heat exchangers, and pipelines in demanding environments, ensuring long-term performance and leak-proof connections.
| STANDARD | UNS | WNR. | JIS | EN |
|---|---|---|---|---|
| Hastelloy C22 | N06022 | 2.4602 | NW 6022 | NiCr21Mo14W |
| Hastelloy C276 | N10276 | 2.4819 | NW 0276 | NiMo16Cr15W |
|
Standard |
Class |
Diameter |
Bolt Circle Diameter |
Number of Bolts |
Bolt Size |
Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
|
AS4087 Flanges |
PN14 Flanges |
95 |
67 |
4 |
M12 |
14 |
|
AS 2129 Flange |
Table C Flanges |
95 |
67 |
4 |
13 |
14 |
|
Table D Flanges |
95 |
67 |
4 |
13 |
14 |
|
|
Table E Flanges |
95 |
67 |
4 |
13 |
14 |
|
|
Table F Flanges |
95 |
67 |
4 |
13 |
14 |
|
|
Table H Flanges |
114 |
83 |
4 |
16 |
17 |
|
|
Table J Flanges |
114 |
83 |
4 |
16 |
17 |
|
|
ANSI B16.5 Flanges |
ANSI 150 Flanges |
89 |
60 |
4 |
13 |
16 |
|
ANSI 300 Flanges |
95 |
67 |
4 |
13 |
16 |
|
|
ANSI 600 Flanges |
95 |
67 |
4 |
13 |
16 |
|
|
ANSI 900 Flanges |
121 |
83 |
4 |
19 |
22 |
|
|
ANSI 1500 Flanges |
121 |
83 |
4 |
19 |
22 |
|
|
ISO 7005 (DIN) Flange |
PN6 Flanges |
80 |
55 |
4 |
M10 |
11 |
|
PN10 Flanges |
95 |
65 |
4 |
M12 |
14 |
|
|
PN16 Flanges |
95 |
65 |
4 |
M12 |
14 |
|
|
PN20 Flanges |
90 |
60.5 |
4 |
M14 |
16 |
|
|
PN25 Flanges |
95 |
65 |
4 |
M12 |
14 |
|
|
PN40 Flanges |
95 |
65 |
4 |
M12 |
14 |
Yes, we offer custom sizes for Hastelloy Plate Flanges to meet specific project needs. Our team at Shiraz Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shirazflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
