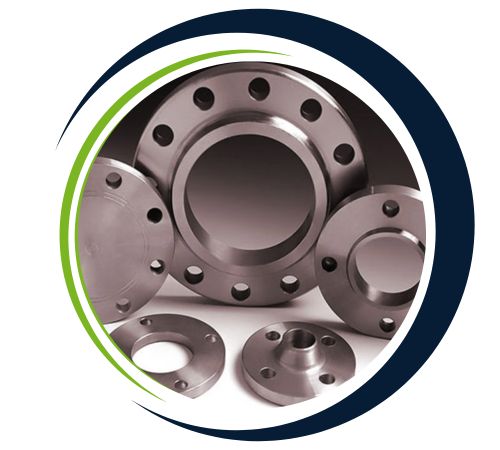

Shiraz Flanges, operating from the industrial heart of Safat, Kuwait, has established itself as a trusted name for robust and reliable piping components. We take particular pride in our expertise with Monel 400 Flanges, where our sourcing and manufacturing processes are tailored to meet the most demanding industrial standards. Our commitment is to provide solutions that don’t just fit but excel in the toughest environments, ensuring our clients receive a product built for longevity and peak performance right from the start.
The standout quality of Monel 400 lies in its unique composition, primarily a blend of nickel and copper, which gives it a remarkable resistance to corrosion. This alloy maintains impressive strength and toughness across a wide range of temperatures, from sub-zero conditions up to high-heat scenarios. It doesn’t become brittle in the cold or weaken significantly when things heat up, making it a wonderfully dependable material for flanges that need to perform consistently under pressure.
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 400 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |

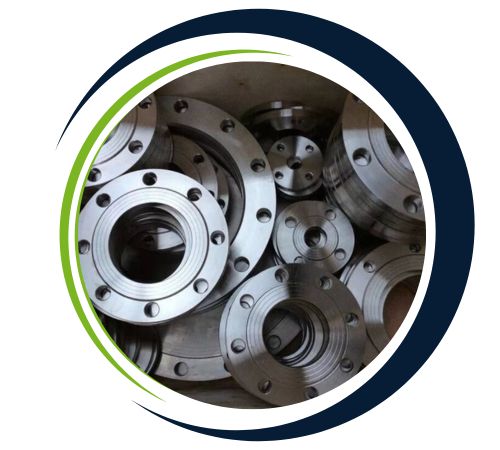

| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |

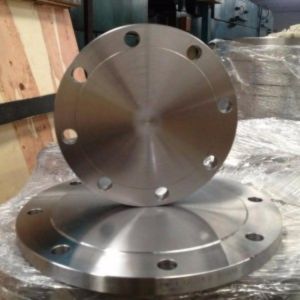

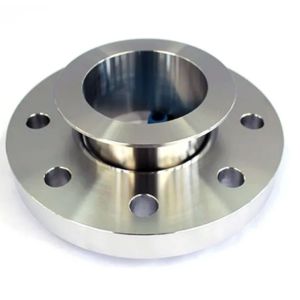

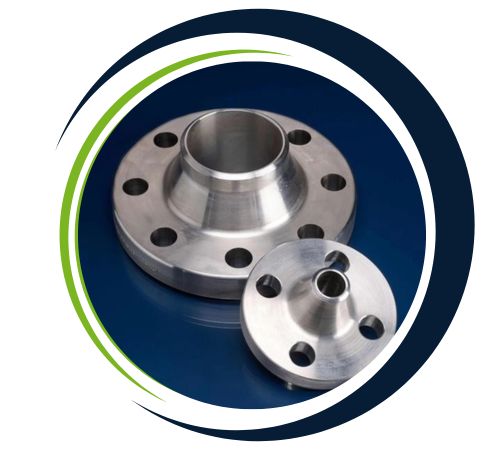

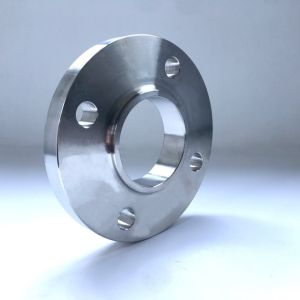

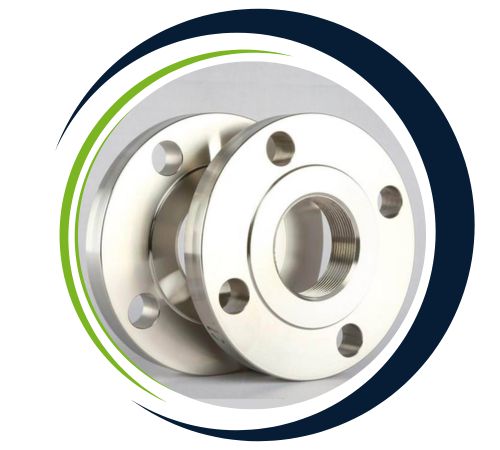

Shiraz Flanges, a leading supplier in Safat, Kuwait, offers an extensive selection of Monel 400 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
Monel 400 flanges are widely used in applications requiring high corrosion resistance and strength. In marine applications they work best in salt water, making them ideal for pipeline systems valves and pumps that are exposed to seawater. In chemical applications Monel 400 flanges are resistant to volatile chemicals, acids and alkalis making them suitable for tanks reactors and heat exchangers In the oil and gas industry these flanges are valuable for handling high-pressure acid gas function, and provide safe- in harsh environmental conditions. They develop long-lasting coordination and strength and their reliability and resilience are essential in their complex applications.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Yes, we offer custom sizes for Monel 400 Flanges to meet specific project needs. Our team at Shiraz Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shirazflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
